CAC Wirraway

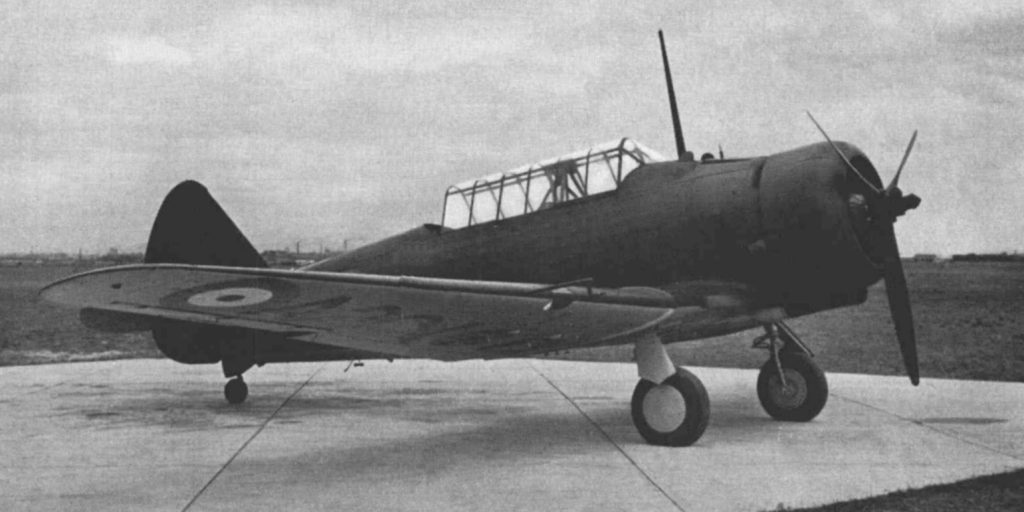

CAC Wirraway at the Fisherman's Bend factory

The aircraft:

The Wirraway was produced by Commonwealth Aircraft Corporation from 1939 to 1946. It was a modified version of the North American Aviation NA-16-2K advanced trainer (also known by its NAA accounting code NA-33), produced under license.

A total of 755 Wirraway aircraft were delivered to the Royal Australian Air Force by CAC. The Wirraway was produced in 3 distinct versions (Wirraway Mk I, Mk II and Mk III) under 7 different production contracts (CA-1, CA-3, CA-5, CA-7, CA-8, CA-9 and CA-16).

The drawings:

This is a series of drawings providing details of the construction and dimensions of the Wirraway, as well as showing the differences between the versions. These drawings have been carefully researched from factory manuals and hundreds of measurements taken from actual aircraft. They were originally drafted at 1:48 scale.

If you download these drawings, you agree to use them under the Creative Commons Attribution Share-Alike 3.0 Unported License. Click here for a full description of this license, but in summary it means that you are free to copy, distribute and adapt these drawings on the conditions that you attribute their creation to me and that if you adapt and distribute them you must also license the adapted versions under the same conditions.

You may seek my permission to waive any of these conditions (if, for example, you wish to publish the drawings in any form) by sending me an email.

Plate 1a: Fuselage stations

CAC Wirraway Plate 01a Fuselage Stations

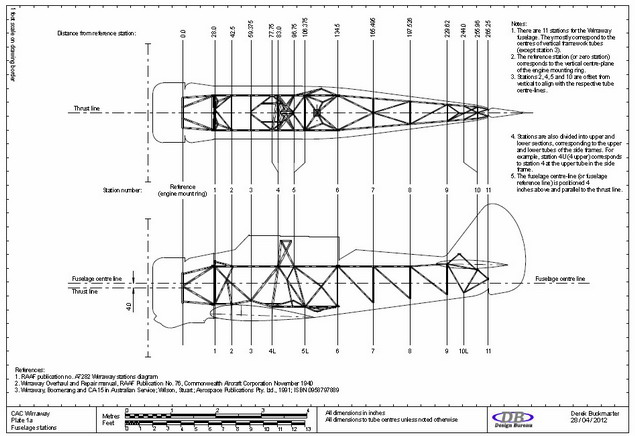

This station diagram shows a series of reference stations which define the geometry of the fuselage. Click on the thumbnail above to open a PDF file formatted for printing on A4 paper (approximately 30 KB in size).

Plate 1b: Fuselage framework

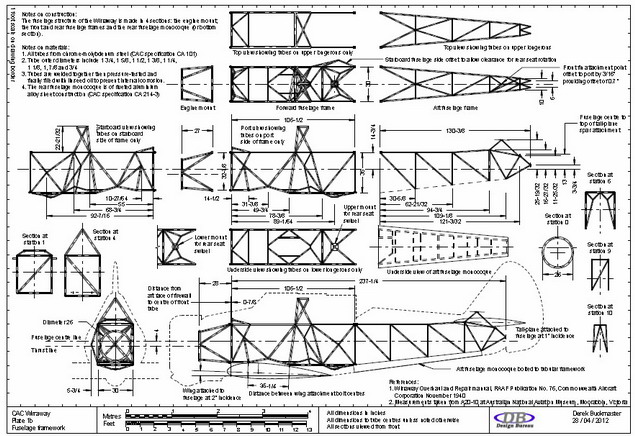

This drawing shows the geometry and dimensions of the Wirraway’s welded chrome-molybdenum steel tube fuselage framework. Click on the thumbnail above to open a PDF file formatted for printing on A4 paper (approximately 37 KB in size).
